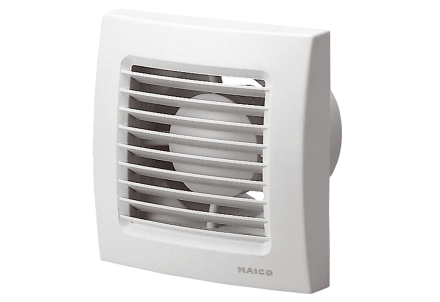

Maico 0084.0007 Small fan ECA 120 VZ

Version with delay timer: Switch-on delay approx. 50 seconds. Run-on time approx. 6 minutes. Speed cannot be controlled. High flow volume despite compact size. Combines high flow volume with pressure strength. Thermal overload protection. Housing made of impact-resistant plastic. Protection class II. With VDE-GS mark, exception: ECA 120 24 V. With protective seals to prevent condensation from penetrating when installed in the ceiling. Speed control optional for ECA fans in standard version. Color traffic white, similar to RAL 9016. Motor: Robust motor with ball bearing, maintenance-free. Suitable for continuous operation. Installation instructions: Cover can be removed quickly and easily. The fan can be attached quickly to the pipe using 2 clamping springs. Electrical connection: Electrical connection can be surface-mounted or flush-mounted. Safety instructions: ECA 120 devices with protection class IP 45 can be used in protection area 1 in accordance with DIN0100-701. For details see planning information. Article: ECA 120 VZ, Design: Delay timer, Delivery volume: 170 m3/h, Speed: 2600 1/min, Speed controllable: no, Reversibility: no, Voltage type: Alternating current, Rated voltage: 230 V, Mains frequency: 50 Hz / 60 Hz, Power consumption: 19 W, IMax: 0.14 A, Protection class: IP 45, Mains cable: 5 / 1.5 mm2, Installation location: Wall, Installation type: Surface-mounted, Installation position: Any, Material: Plastic, Color: traffic white, similar to RAL 9016, Weight: 0.9 kg, Weight with packaging: 1.06 kg, Nominal width: 120 mm, Width: 171 mm, Height: 171 mm, Depth: 114 mm, Width with packaging: 180 mm, Height with packaging: 180 mm, Depth with Packaging: 140 mm, conveying medium temperature at IMax: 40 °C, run-on time: 6 min, switch-on delay: 50 s, sound pressure level: 42 dB(A) / distance 3 m, free field conditions
