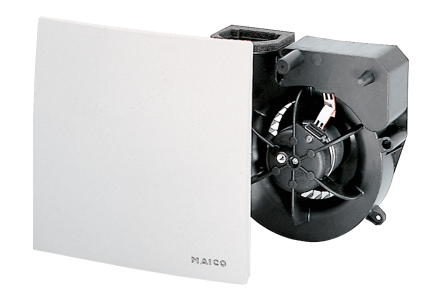

Maico 0084.0107 Fan insert ER 60 GVZ

Version with base load circuit and delay timer: The device runs continuously at 35 m3/h. The full load level can be switched on/off using a light switch or a separate switch. Switching to full load with a switch-on delay of approx. 50 seconds. Full load run-on time approx. 6 minutes. Circuit variant: The base load can be switched on or off using an additional switch (see circuit diagrams on the Internet). Speed cannot be controlled. Fan with cover and ISO Coarse > 30% (G2) filter for installation in a flush-mounted housing. For one-room or two-room ventilation with a single fan (exception: version H). Easy filter replacement without tools. Cover can be rotated by +- 5°, allowing compensation if the housing is installed at an angle. Simple and quick installation of the fan in the housing using the snap fastener and the electrical plug connection. Color traffic white similar to RAL 9016. All MAICO ER devices correspond to protection class IP X5 and can therefore be installed in area 1 according to DIN0100-701, even with water jets. For details see planning information. Protection class II. The extremely steep characteristic curve shows the high pressure capacity of the ER fans. Robust energy-saving capacitor motor. Motor with thermal overload protection. Maintenance-free, with ball bearings closed on both sides. Volume flow characteristic curve and leakage air rate tested by TÜV Bayern eV Leakage air volume flow < 0.01 m3/h. Shaft level difference according to DIN 4109, tested by IAB Oberursel. With VDE mark. Article: ER 60 GVZ, design: base load and delay timer, flow volume: 35 m3/h / 62 m3/h, speed: 850 1/min / 1250 1/min, air direction: ventilation, speed controllable: no, SEC average: -3.43 kWh/(m2*a), voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, power consumption: 10 W / 21 W, IMax: 0.12 A / 0.16 A, protection class: IP X5, mains cable: 5 / 1.5 mm2, installation location: wall / ceiling, installation type: flush-mounted, system type: decentralized, material: plastic, color: traffic white, similar to RAL 9016, weight: 1.52 kg, weight with packaging: 1.8 kg, filter class: ISO Coarse > 30% (G2), blow-out direction: side, width: 250 mm, height: 250 mm, depth: 150 mm, width with packaging: 280 mm, height with packaging: 280 mm, depth with packaging: 155 mm, conveying medium temperature at IMax: 40 °C, run-on time: 6 min, switch-on delay: 50 s, sound pressure level: 26 dB(A) / 36 dB(A) / specification in accordance with DIN 18017-3 with an equivalent absorption area AL = 10 m2, nominal width: 75 mm / 80 mm
