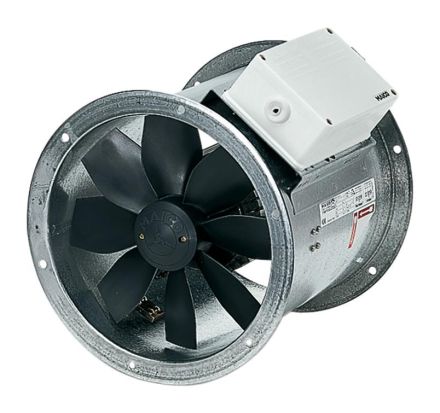

Pipe sleeve made of galvanized sheet steel, with flange on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Dynamically balanced in 2 planes, in accordance with quality level 6.3, DIN ISO 1940, Part 1. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220:1998. To avoid vibration transmission to the pipe system: use elastic connecting pieces, feet and vibration dampers. High protection class IP 55. Exception EZR/DZR... D IP 54. Installation possible in any position. Motor: asynchronous motor, speed controllable. Exception: type DZR 40/2 B. Not suitable for conveying air saturated with water vapor. The conveying direction is marked on the device with a direction of rotation and conveying direction arrow. Reversing operation: The volume flow is reduced by approx. 35% if the conveying direction is abnormal. Three-phase motor: DZR series. Rated voltage 400 V, 50 Hz. Thermal overload protection as standard. Exception: Available on request for DZR 25/4 D and pole-changing axial tube fans. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided on site. Electrical connection: External terminal box with cable grommets. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZR 56/4 B, conveying volume: 12640 m3/h, nominal conveying volume: 9950 m3/h / in opt. Efficiency, pressure pfs, nominal: 170 Pa - in opt. efficiency, speed nNenn: 1400 1/min - in opt. efficiency, speed: 1430 1/min, impeller type: axial, speed controllable: yes, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 1170 W / in opt. efficiency, INenn: 1.9 A / in opt. Efficiency, IMax: 2.4 A, Protection class: IP 55, Thermal class: F, Pole-changing: no, Mains cable: 7 / 1.5 mm2, Installation position: horizontal / vertical, Material: Sheet steel, galvanized, Weight: 35.16 kg, Nominal width: 560 mm, Width: 664 mm, Height: 700 mm, Depth: 400 mm, A: 570 mm, B: 400 mm, Conveyor temperature at IMax: 60 °C, Overall efficiency e: 60.1%, Measurement category: D, Efficiency category: total, Efficiency level N: 66.4, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / Conveyor volumeBEP / Pfs, BEP: 0.99 kW / 11390 m3/h, nBEP: 1420 1/min, specific ratio: approx. 1, Information on dismantling and disposal: see assembly instructions, Information on installation, operation and maintenance: see assembly instructions, Items used in the efficiency measurement that are not described by the measurement category: -, pf, BEP: 188 Pa, Sound power level LWA5: 88 dB(A), DC motor: false
| Property | Value |
| Diameter of the housing: | 664 mm |
| Air volume unloaded: | 11390 m³/h |
| Material of the housing: | stainless steel |
| Protection class (IP): | IP55 |
| Connection voltage: | 400 V |
| DC motor: | no |
| Pole-changing: | no |
| Length: | 400 mm |
