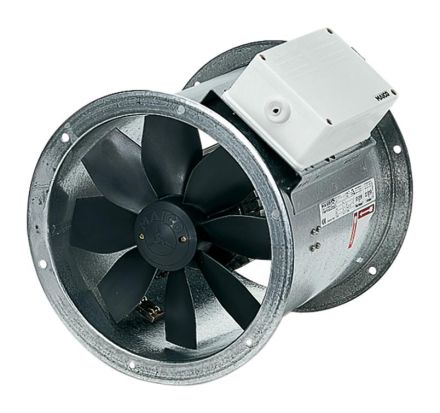

Pipe sleeve made of galvanized sheet steel, with flange on both sides. 8-blade impellers made of glass fiber reinforced polyamide. Dynamically balanced in 2 planes, in accordance with quality level 6.3, DIN ISO 1940, Part 1. Flange holes in accordance with DIN EN 12220:1998. DZR 56/6 B and DZR 56/4 B: Flange holes in accordance with DIN EN 12220:1998. To avoid vibration transmission to the pipe system: use elastic connecting pieces, feet and vibration dampers. High protection class IP 55. Exception EZR/DZR... D IP 54. Installation possible in any position. Motor: asynchronous motor, speed controllable. Exception: type DZR 40/2 B. Not suitable for conveying air saturated with water vapor. The conveying direction is marked on the device with a direction of rotation and conveying direction arrow. Reversing operation: The volume flow is reduced by approx. 35% if the conveying direction is abnormal. Three-phase motor: DZR series. Rated voltage 400 V, 50 Hz. Thermal overload protection as standard. Exception: Available on request for DZR 25/4 D and pole-changing axial duct fans. The connections are potential-free on terminals and must be connected to a motor protection switch, e.g. MV 25, or the control circuit of a contactor. Pole-changing fans: Ensure overload protection with a motor protection switch to be provided on site. Electrical connection: External terminal box with cable grommets. Safety instructions: The fan may only be put into operation if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: DZR 40/2 B, conveying volume: 9030 m3/h, nominal conveying volume: 6515 m3/h / in opt. Efficiency, pressure pfs, nominal: 355 Pa - in opt. efficiency, speed nNenn: 2930 1/min - in opt. efficiency, speed: 2953 1/min, impeller type: axial, speed controllable: no, reversibility: yes, voltage type: three-phase current, rated voltage: 400 V, mains frequency: 50 Hz, rated power: 1525 W / in opt. efficiency, INenn: 2.6 A / in opt. Efficiency, IMax: 3.5 A, Protection class: IP 55, Thermal class: F, Pole-changing: no, Mains cable: 7 / 1.5 mm2, Installation position: horizontal / vertical, Material: Sheet steel, galvanized, Weight: 23.13 kg, Nominal width: 400 mm, Width: 438 mm, Height: 438 mm, Depth: 370 mm, A: 413 mm, B: 370 mm, Conveyor temperature at nominal current: 60 °C, Conveyor temperature at IMax: 60 °C, Overall efficiency e: 60.6%, Measurement category: D, Efficiency category: total, Efficiency grade N: 66.2, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 1.3 kW / 7990 m3/h, nBEP: 2940 1/min, specific ratio: approx. 1, information on dismantling and disposal: see assembly instructions, information on installation, operation and maintenance: see assembly instructions, items used in the efficiency measurement that are not described by the measurement category: -, pf, BEP: 355 Pa, sound power levelLWA5: 93 dB(A), DC motor: false
| Property | Value |
| Diameter of the housing: | 438 mm |
| Air volume unloaded: | 7990 m³/h |
| Material of the Housing: | stainless steel |
| Protection class (IP): | IP55 |
| Connection voltage: | 400 V |
| DC motor: | no |
| Pole-changing: | no |
| Length: | 370 mm |
