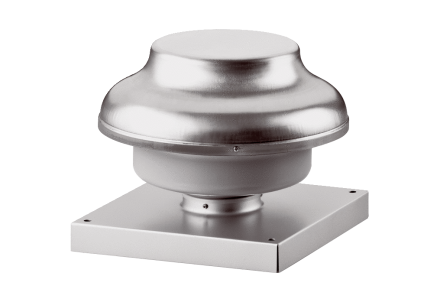

Maico 0087.0301 Radial roof fan EHD 12

In stock
SKU: 295926
€373.91
Into a basketIn the basketGo

Overview

Space-saving roof fan with extremely small dimensions. For ventilation. Attractive housing made of galvanized and powder-coated sheet steel. Cover made of aluminum. The cover is easily removable for cleaning. Coated safety grille. Radial impeller with backward-curved blades. Protection class IP X5. Motor: external rotor capacitor motor. Operating capacitor ready for connection in the terminal box. Speed controllable. Thermal overload protection as standard. Robust motor with ball bearing, maintenance-free. Installation instructions: Thanks to its low weight, no crane or freight elevator is required to transport the EHD to the roof. Electrical connection: Connection to terminal block in the housing. Safety instructions: With free intake, the fan may only be operated if the impeller is protected against contact in accordance with DIN EN ISO 13857. Article: EHD 12, delivery volume: 325 m3/h, impeller type: radial, speed controllable: yes, reversibility: no, energy efficiency class: C, voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, rated power: 49 W, IMax: 0.22 A, protection class: IP X5, pole-changing: no, mains cable: 3 / 1.5 mm2, installation location: roof, installation position: vertical, material: sheet steel, galvanized, weight: 4.4 kg, weight with packaging: 5.03 kg, nominal width: 125 mm, width: 333 mm, height: 333 mm, depth: 261 mm, width with packaging: 385 mm, height with Packaging: 385 mm, depth with packaging: 300 mm, conveying medium temperature at IMax: -20 °C to 70 °C, sound pressure level: 52 dB(A) / distance 3 m, free field conditions

Property Value
Mains frequency: 50 Hz
Rated voltage: 230 V
Integrated automatic closing flap: no
Volume flow: 325 m³/h
Rated power: 49 W
Housing material: Sheet steel
Protection class (IP): IPX5

Characteristics

ManufacturerMaico
HAN0087.0301
GTIN4012799873013
Rated voltage230V
IP protection)IPX5
Housing materialSheet steel
Maico 0087.0301 Radial roof fan EHD 12
Maico 0087.0301 Radial roof fan EHD 12
