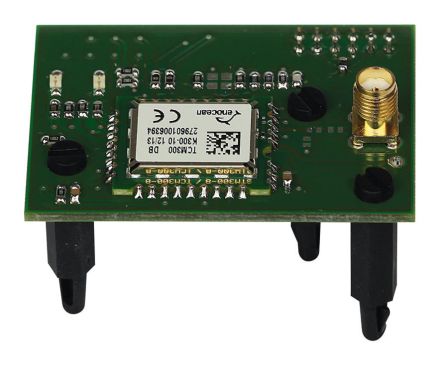

Maico 0092.0556 E-SM extension module

In stock
SKU: 713910
€230.86
Into a basketIn the basketGo

Overview

The communication module enables the ventilation unit to be controlled using the EnOcean radio standard. After attaching the plug-in module to the base board, radio sensors and radio control units can be taught into the control system. For central ventilation units Trio, WS 160 Flat, WS 170 KBR../WS 170 KBL.., WR 310/WR 410, WS 320 and WS 470. The data is transmitted in the 868.3 MHz frequency band. Only the following EnOcean Equipment Profiles (EEP) are supported by the E-SM plug-in module: Humidity-temperature, Afriso, EEP A5-04-01, Humidity-temperature, Thermokon, EEP A5-04-01, CO2 temperature, Afriso, EEP A5-09-08, CO2 temperature, Thermokon, EEP A5-09-04, Wall transmitter 4-channel, PEHA, EEP F6-02-01Article: E-SM, Rated voltage: 12 V DC, Weight: 0.07 kg, Weight with packaging: 0.122 kg, Width: 54 mm, Height: 39 mm, Depth: 47 mm, Width with packaging: 187 mm, Height with packaging: 47 mm, Depth with packaging: 143 mm, Suitable for products: Trio, WS 160 Flat, WS 320..., WS 470..., WR 310, WR 410, Suitable for box fans: no, Suitable for roof fans: no, Suitable for duct fans: no, Suitable for heat recovery systems: yes, Suitable for wall-mounted fans: no, Suitable for wall-mounted fans: no, Suitable for residential fans: yes, Suitable for centrifugal fans: no, Suitable for circulation fans: no

Property Value
Mounting type: Device installation duct
Other bus systems: other
Protocol: other
KNX bus system: no
With LED display: no
Version: Wireless interface manufacturer-specific
Bus system radio bus: yes
Bus system Powernet: no
Bus system LON: no
Wireless interface: yes
Bus system KNX radio: no

Characteristics

HABE-SM
ManufacturerMaico
HAN0092.0556
GTIN4012799925569
Other bus systemsOther
VersionManufacturer-specific radio interface
Bus system radio busYes
KNX bus systemNo
KNX radio bus systemNo
LON bus systemNo
Powernet bus systemNo
With LED displayNo
Mounting typeDevice installation channel
