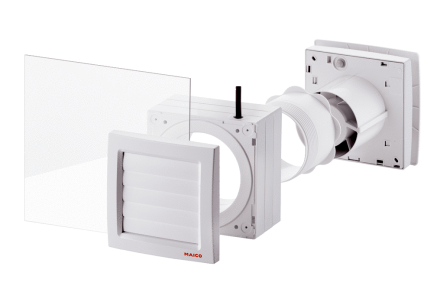

For installation in windows and thin walls. Color traffic white similar to RAL 9016. Housing made of impact-resistant plastic. Scope of delivery: External flap AP or external grille SG, 3 x spacer frame, 2 x sealing rings, threaded connector, 3 x screws for fastening the fan, strain relief bracket with 2 x screws, cable grommet, installation instructions. Installation instructions: Easy installation in the window cutout using adapters and threaded connectors that can be screwed into one another. Pane thickness at least 3 mm, pane spacing up to 75 mm. Pane cutout 115 to 120 mm. Not suitable for installation in hinged double windows. Electrical connection: On the terminal block in the housing of the ECA 100 ipro...Article: FE 100/1 AP, Installation location: Window / thin wall, Installation position: horizontal, Material: Plastic, impact-resistant, Color: traffic white, similar to RAL 9016, Weight: 0.3964 kg, Weight with packaging: 0.482 kg, Width: 150 mm, Height: 150 mm, Depth: 103 mm, Width with packaging: 157 mm, Height with packaging: 157 mm, Depth with packaging: 123 mm
