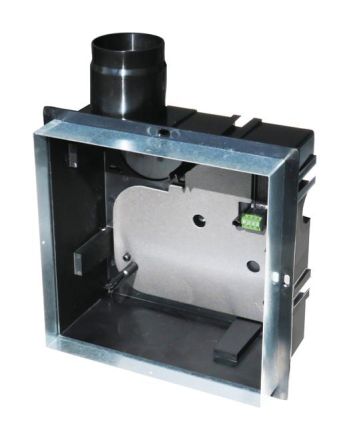

Maico 0093.1564 ER GH-VWR flush-mounted housing

In stock
SKU: 713835
€98.13
Into a basketIn the basketGo

Overview

Version for pre-wall register construction: With 40 mm deep extension frame. Exhaust nozzle can be converted from side to back without tools. Side mounting grooves for installation with mounting brackets or in pre-wall installations. Automatic plastic check valve that also functions as a cold smoke barrier. For applications in accordance with DIN 18017-3. Special properties: Version for pre-wall register construction. With 40 mm deep extension frame. Exhaust nozzle can be converted from side to back without tools. Side mounting grooves for installation with mounting brackets or in pre-wall installations. Automatic plastic check valve that also functions as a cold smoke barrier. For applications in accordance with DIN 18017-3. Single-room ventilation: Installation in bathrooms, toilets and apartment kitchens. For use in pre-wall register construction with a 40 mm extension frame. 6 side mounting grooves enable easy installation. All-round frame enables further fastening options. Flexible cable entry enables electrical connection from the side or rear. Simple electrical wiring on a practical pin strip terminal. With plaster protection cover to close the housing during the shell construction phase. Plastic exhaust nozzle with automatic plastic non-return valve that can be converted without tools for side (top, left, right) and rear exhaust directions. Connection diameter DN 75/80. Predetermined breaking point for second room connection or WC connection nozzle included as standard in the ER GH-VWR housing. Approval notices on request or on our homepage www.maico-ventilatoren.com. Plastic parts normally flammable in accordance with DIN 4102-1 Class B 2 (in accordance with EN 13501-1). Optional accessories: Extractor nozzle ER-AS for toilet seat ventilation, second room connection ER-ZR, mounting set ER-MS, mounting bracket ER-UPMArticle: ER GH-VWR, Air direction: Ventilation, Installation location: Wall / ceiling, Material: Plastic / metal, Color: black / galvanized, Weight: 0.865 kg, Weight with packaging: 1.185 kg, Blow-out direction: side / rear, Connection diameter: 75 mm / 80 mm, Width: 280 mm, Height: 133 mm, Depth: 343 mm, Width with packaging: 320 mm, Height with packaging: 190 mm, Depth with packaging: 420 mm

Property Value
Color: black
Connection diameter: 75 mm
With fire protection barrier: no
Installation height: 133 mm
Installation width: 280 mm
Installation depth: 343 mm
Housing material: Plastic

Characteristics

HABER GH-VWR
ManufacturerMaico
HAN0093.1564
GTIN4012799992349
ColorBlack
Housing materialPlastic
Maico 0093.1564 ER GH-VWR flush-mounted housing
Maico 0093.1564 ER GH-VWR flush-mounted housing
