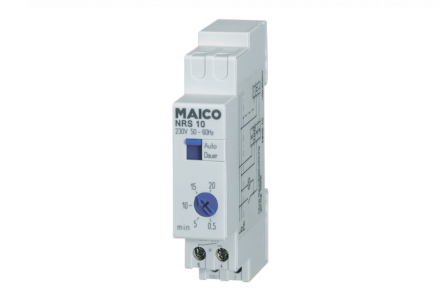

Run-on relay for setting the fan run-on time. Can be operated using standard off switches, buttons and door contact switches. For thermal reasons, installation with side air is necessary. Article: NRS 10, Rated voltage: 230 V, Mains frequency: 50 Hz / 60 Hz, Maximum load (inductive load): 2.5 A, Maximum load (ohmic load): 10 A, Protection class: IP 20, Installation type: Control cabinet, Weight: 0.075 kg, Weight with packaging: 0.09 kg, Width: 17.5 mm, Height: 90 mm, Depth: 73 mm, Width with packaging: 27 mm, Height with packaging: 93 mm, Depth with packaging: 74 mm, Remote control: no, Run-on time: 0.5 min - 20 min, Suitable for box fans: no, Suitable for roof fans: yes, Suitable for pipe fans: no, Suitable for heat recovery systems: no, Suitable for wall-mounted fans: no, Suitable for wall-mounted fans: no, Suitable for residential fans: yes, Suitable for centrifugal fans: no, Suitable for circulation fans: no
| Property | Value |
| Voltage type for actuation: | AC |
| Rated control supply voltage Us at AC 50 Hz: | 0 to 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 0 to 230 V |
| Width: | 17.5 mm |
| Depth: | 73 mm |
| Height: | 90 mm |
| Remote control possible: | no |
