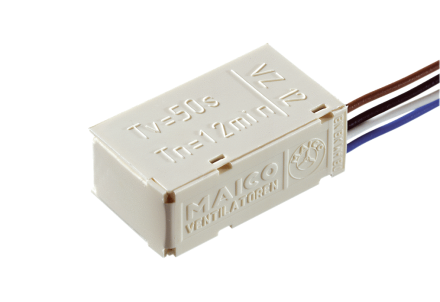

Maico 0157.0821 Delay timer VZ 12

In stock
SKU: 295943
€40.38
Into a basketIn the basketGo

Overview

Delay timer for controlling the switch-on delay and run-on time of fans. Can be operated using standard switches. VZ 24 C: Can be operated using standard switches or buttons. Interference-proof in accordance with EN 61000-4-5 (at 1000 V to 4000 V). If necessary, take additional interference suppression measures (L, C or RC elements, protective diodes, varistors). Test mark: VDE.Article: VZ 12, Rated voltage: 230 V, Mains frequency: 50 Hz / 60 Hz, Maximum load: 1.25 A, Protection class: IP 40, Weight: 0.012 kg, Weight with packaging: 0.016 kg, Width: 20 mm, Height: 13 mm, Depth: 35 mm, Width with packaging: 20 mm, Height with packaging: 13 mm, Depth with packaging: 35 mm, Ambient temperature: 0 °C to 50 °C, Remote control: no, Run-on time: 12 min, Switch-on delay: 50 s, Suitable for box fans: no, Suitable for roof fans: no, Suitable for pipe fans: no, Suitable for heat recovery systems: no, Suitable for wall-mounted fans: yes, Suitable for wall-mounted fans: no, Suitable for residential fans: yes, Suitable for centrifugal fans: no, Suitable for circulation fans: no

Property Value
Voltage type for actuation: AC
Rated control supply voltage Us at AC 50 Hz: 0 to 230 V
Rated control supply voltage Us at AC 60 Hz: 0 to 230 V
Width: 20 mm
Depth: 35 mm
Height: 13 mm
Remote control possible: no

Characteristics

ManufacturerMaico
HAN0157.0821
GTIN4012799578215
Rated control supply voltage Us at AC 50 Hz0 to 230V
Rated control supply voltage Us at AC 60 Hz0 to 230V
Width20 mm
Remote control possibleNo
Height13 mm
Voltage type for actuationAC
Depth35 mm
