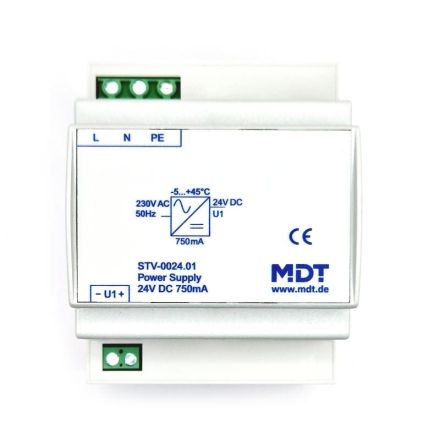

MDT STV-0024.01 Power supply, 4TE, REG, 750mA, 24VDC

In stock

SKU: 187272

Price on request

€80.32

€0

Overview

MDT STV-0024.01 power supply, 4TE, REG, 750mA, 24VDC

Power supply, 4TE REG, 750mA, 24VDC SELV
Continuous current 750mA

SELV power supply 24VDC for universal applications
Suitable for VisuControl touch panel
Supply voltage 230VAC
Short-circuit proof

Property	Value
Installation height:	90 mm
Type of supply voltage:	AC
Output voltage adjustable:	no
Rated supply voltage at AC 50 Hz:	230 V
Short-circuit proof:	yes
Stabilized:	yes
Direct mounting possible:	no
Design of the electrical connection:	screw connection
Output voltage regulated:	yes
Power output:	18 W
Suitable for series installation:	yes
Rail mounting possible:	yes
Wall mounting possible:	no
Protection class (IP):	IP20
Rated output voltage 1:	24 V
Rated output current 1:	0.75 A
Width in pitch units:	4
Installation width:	70 mm
