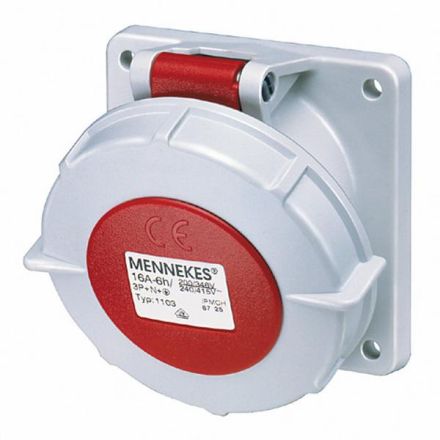

Mennekes 1173 16A5p 6H400V IP67 surface-mounted box

In stock

SKU: 427549

Price on request

€126.71

€0

Overview

16A5P 6H400V panel box TwinCONTACT IP 67 screwless connection technology inclination 20° FL. 85 x 85 mm BL. 70 x 70 mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	screwless terminal
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time position:	6 h
Identification color:	red
Protection class (IP):	IP67
Material:	plastic
Military version:	no
Horizontal hole spacing:	70 mm
Vertical hole spacing:	70 mm
Horizontal flange dimension:	85 mm
Vertical flange dimension:	85 mm
Cable entry:	other
Rated voltage:	399 to 400 V
Rated frequency:	50 to 60 Hz
