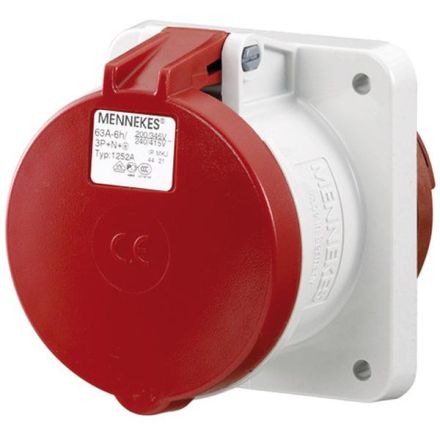

Mennekes 1252A 63A5P 6H400V TA IP44 CEE surface-mounted box

Mennekes 1252A 63A5P 6H400V TA IP44 CEE surface-mounted box

In stock

SKU: 427594

Price on request

€195.48

€0

Into a basketIn the basketGo

Overview

63A5P 6H400V surface-mounted box TA IP 44 with box terminal and X-CONTACT FL. 107 X 100 mm BL. 85 X 77 mm

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time position:	6 h
Identification color:	red
Protection class (IP):	IP44
Material:	plastic
Military version:	no
Horizontal hole spacing:	77 mm
Vertical hole spacing:	85 mm
Horizontal flange dimension:	100 mm
Vertical flange dimension:	107 mm
Cable entry:	other
Rated voltage:	399 to 400 V
Rated frequency:	50 to 60 Hz

Characteristics

Rated frequency50 to 60 Hz

HAB1252A 63A5P 6H400V TA-IP44

Manufacturer

HAN1252A

GTIN4015394008842

Connection technologyScrew terminal

Rated voltage399 to 400 V

IEC current63 A

Cable entryOther

Identification colorRed

Military versionNo

Number of poles5

IP protection)IP44

Voltage according to EN 60309-2400 V (50+60 Hz) red

Plug directionStraight

UL/CSA current rating (if UL version required)60A

Time position6 hours

MaterialPlastic
