Mennekes 145 16A5P 6H400V IP44 surface-mounted box

In stock

SKU: 427585

Price on request

€80.33

€0

Overview

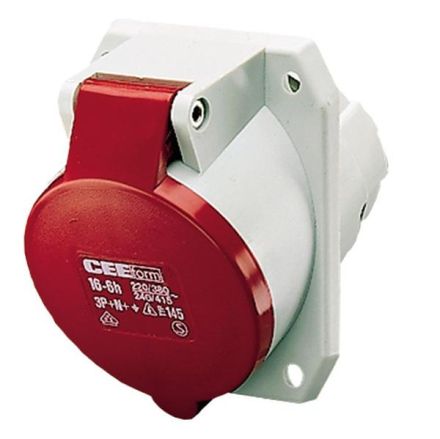

CEE panel socket 145 IEC current 16A, 5-pin, voltage according to EN 60309-2 400 V (50+60 Hz) red, time setting 6h, identification color red, IP44

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	Screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
Protection class (IP):	IP44
Material:	Plastic
Military version:	no
Horizontal hole spacing:	52 mm
Vertical hole spacing:	70 mm
Horizontal flange dimension:	71 mm
Vertical flange dimension:	87 mm
Cable entry:	other
Rated voltage:	399 to 400 V
Rated frequency:	50 to 60 Hz
