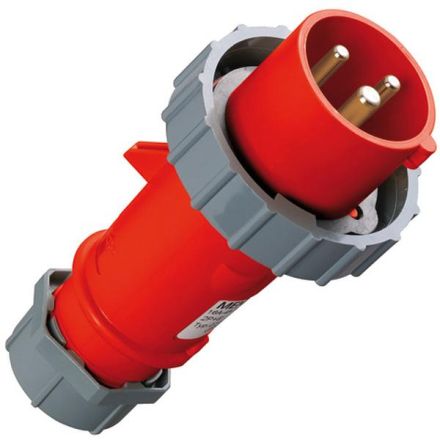

Mennekes 279 AM-TOP 16A 3p 9h 400V IP67 plug

Mennekes 279 AM-TOP 16A 3p 9h 400V IP67 plug

In stock

SKU: 427529

Price on request

€99.49

€0

Into a basketIn the basketGo

Overview

Plug AM-TOP, 16A3p9h400V, IP67

Property	Value
IEC current:	16 A
Number of poles:	3
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
UL/CSA current (if UL version required):	20 A
Identification color:	red
Phase inverter:	no
Protection class (IP):	IP67
Connection technology:	screw terminal
Cable entry:	screw connection
Plug direction:	straight
Clock position:	9 h
Material:	plastic
Military version:	no
RAL number:	3013

Characteristics

Phase inverterNo

HABAM-TOP 16A 3p 9h 400V IP67

Manufacturer

HAN279

GTIN4015394001911

Connection technologyScrew terminal

IEC current16A

Cable entryScrew connection

Identification colorRed

Military versionNo

Number of poles3

RAL number3013

IP protection)IP67

Voltage according to EN 60309-2400 V (50+60 Hz) red

Plug directionStraight

UL/CSA current rating (if UL version required)20A

Time position9 hrs

MaterialPlastic

Mennekes 279 AM-TOP 16A 3p 9h 400V IP67 plug

Mennekes 279 AM-TOP 16A 3p 9h 400V IP67 plug

Price on request

€99.49

€0

Into a basketIn the basketGo

Delivery in Europe

We will deliver your order to all European cities.

We are located

8200-121 Albufeira.R. Dr. Diogo Leote 35.

24 hours

We will send the order within 24 hours.
