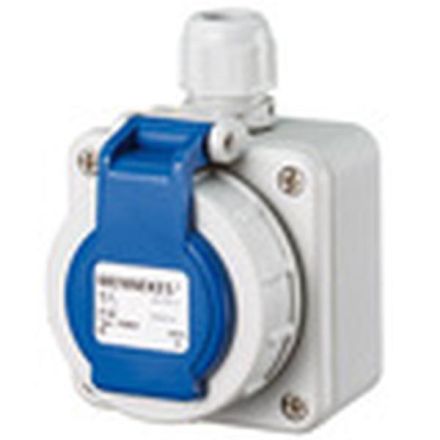

HAB10863 16A2P+E 230V DWD blue
HAN10863
GTIN4015394035701
LockableNo
Connection typeScrew terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
VersionSCHUKO
Surface finishFrosted
Ejection mechanismNo
Mounting typeFastening with screw
Residual current protectionNo
Frequency50 to 60 Hz
Suitable for protection class (IP)IP67
Device width75 mm
Device height75 mm
Device depth108 mm
Halogen freeYes
Min. depth of the device box75 mm
With micro fuseNo
With hinged lidYes
With orientation lightingNo
With signal lampNo
With increased contact protectionNo
Mounting typeSurface-mounted
Nominal voltage230V
Rated current16A
SurfaceOther
Impact resistanceIK10
Protective contactYes
Protective conductor contact roundYes
Special power supplyOther
Text field/label areaNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
