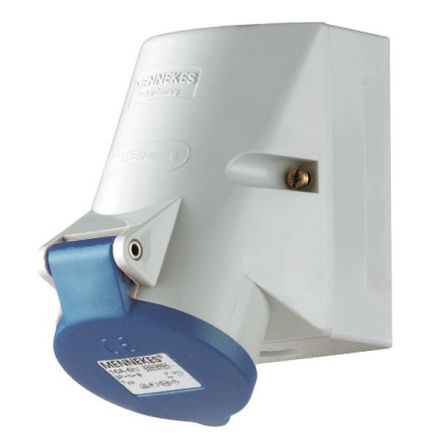

Mennekes 1720 16A3p 6H230V TwinCONTACT IP44 CEE wall socket

Mennekes 1720 16A3p 6H230V TwinCONTACT IP44 CEE wall socket

In stock

SKU: 427651

Price on request

€25.16

€0

Into a basketIn the basketGo

Overview

16A3P 6H230V wall socket TwinCONTACT IP 44 internal fastening screwless connection technology

Property	Value
IEC current:	16 A
Number of poles:	3
Protection class (IP):	IP44
Identification color:	blue
Connection technology:	screwless terminal
Design:	Surface-mounted
Voltage according to EN 60309-2:	200-250 V (50+60 Hz) blue
Time setting:	6 h
Material:	Plastic
Mounting type:	internal mounting
Military version:	no
Insulated installation:	no
UL/CSA current (if UL version required):	20 A
RAL number:	5007

Characteristics

HAB1720 16A3p 6H230V TwinCONTACT IP44

Manufacturer

HAN1720

GTIN4015394210245

Connection technologyScrewless terminal

VersionSurface-mounted

Mounting typeInternal fastening

IEC current16A

Insulated installationNo

Identification colorBlue

Military versionNo

Number of poles3

RAL number5007

IP protection)IP44

Voltage according to EN 60309-2200-250 V (50+60 Hz) blue

UL/CSA current rating (if UL version required)20A

Time position6 hours

MaterialPlastic
