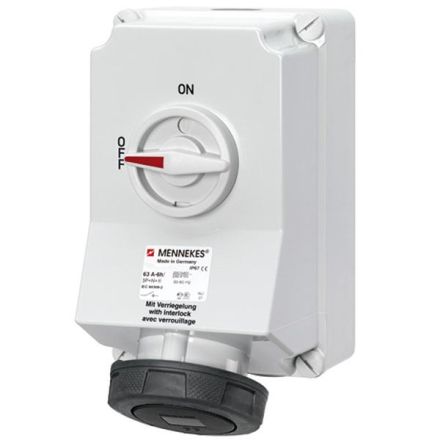

Mennekes 50694 DUO 63A 4-pole 7h 500V IP67 wall socket

In stock

SKU: 427450

Price on request

€915.52

€0

Overview

Wall socket DUO, 63A4p 7h500V, IP67 with box terminal and X-CONTACT switchable, as Art. 5111A/1074 but with additional auxiliary contacts on the switch (1 x normally closed, 1 x normally open) Switch: 40147000 + 40157000 Cable entries: M40 and M16 each open at the top, closed at the bottom.

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	4
Switch:	mechanical locking
Empty spaces on mounting rail:	no
Fuses:	mixed
Voltage according to EN 60309-2:	500 V (50+60 Hz) black
Time setting:	7 h
Identification colour:	black
With residual current device:	no
Material of Housing:	Plastic
Military version:	no
Version:	Lower and upper part
