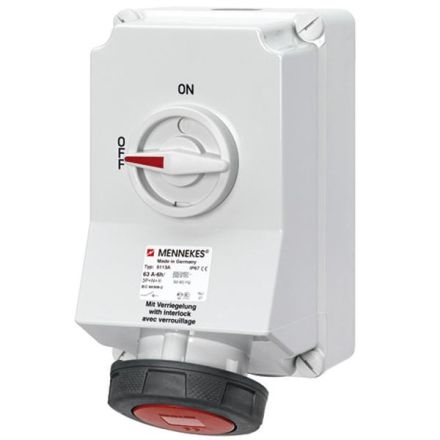

Mennekes 5113AB DUO 63A 5-pin 6h 400V IP67 wall socket

In stock

SKU: 427383

Price on request

€858.04

€0

Overview

63A5P 6H400V wall socket DUO IP 67 with box terminal and X-CONTACT switch 3P with additional auxiliary contacts (1x normally closed, 1x normally open) switch (40147000) + (40151000) cable entries: M40 and M25 open at the top, with sealing plug at the bottom

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	5
Switch:	mechanical locking
Empty spaces on mounting rail:	no
Fuses:	mixed
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification color:	red
With residual current device:	no
Housing material:	plastic
Military version:	no
Version:	Lower and upper part
