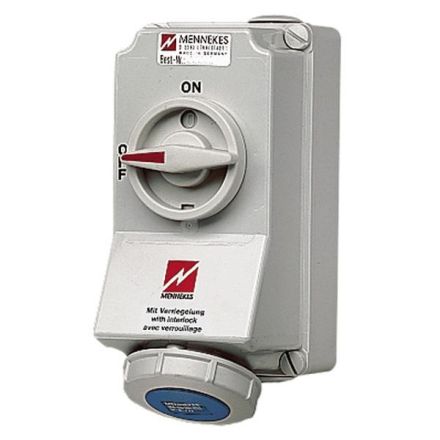

Mennekes 51411 DUO 32A 7-pin 9h 230V IP67 wall socket

Mennekes 51411 DUO 32A 7-pin 9h 230V IP67 wall socket

In stock

SKU: 427447

Price on request

€1,205.64

€0

Into a basketIn the basketGo

Overview

32A7P 9H230V wall socket DUO IP 67 HW/VN switch 6P with auxiliary contacts (1S/1oe) type KG 64 BK 602 DA 004 VE (40192000)

Property	Value
IEC current:	32 A
UL/CSA current (if UL version required):	30 A
Number of poles:	7
Switch:	mechanical locking
Empty spaces on Mounting rail:	no
Fuse protection:	mixed
Voltage according to EN 60309-2:	230 V (50+60 Hz) blue
Time setting:	9 h
Identification color:	blue
Protection class (IP):	IP67
With residual current device:	no
Housing material:	plastic
Military version:	no
Version:	Lower and upper part

Characteristics

HABDUO 32A 7-pin 9h 230V IP67

Manufacturer

HAN51411

GTIN4015394102823

VersionBottom and top

IEC current32 A

Identification colorBlue

Military versionNo

Number of poles7

IP protection)IP67

Voltage according to EN 60309-2230 V (50+60 Hz) blue

UL/CSA current rating (if UL version required)30A

Time position9 hrs

Housing materialPlastic
