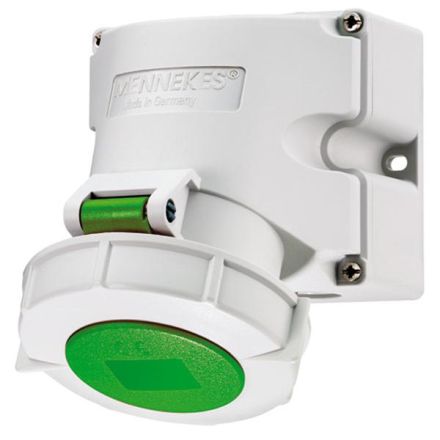

Mennekes 9124 TwinCONTACT 16A4p10h 100-300Hz wall socket

In stock
SKU: 427507
€156.68
Into a basketIn the basketGo

Overview

16A4P 10h 100-300Hz wall socket TwinContact IP67 screwless connection technology, suitable for through-wiring with 2-point external fastening

Property Value
IEC current: 16 A
Number of poles: 4
Protection class (IP): IP67
Identification color: green
Connection technology: screwless terminal
Design: Surface-mounted
Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
Time setting: 10 h
Material: Plastic
Mounting type: External mounting
Military version: no
Insulated installation: no
UL/CSA current (if UL version required): 20 A
RAL number: 6010

Characteristics

HABTwinCONTACT 16A4p10h 100-300Hz
ManufacturerMENNEKES
HAN9124
GTIN4015394281146
Connection technologyScrewless terminal
VersionSurface-mounted
Mounting typeExternal fastening
IEC current16A
Insulated installationNo
Identification colorGreen
Military versionNo
Number of poles4
RAL number6010
IP protection)IP67
Voltage according to EN 60309-250-500 V (100-300 Hz) green
UL/CSA current rating (if UL version required)20A
Time position10 hrs
MaterialPlastic
