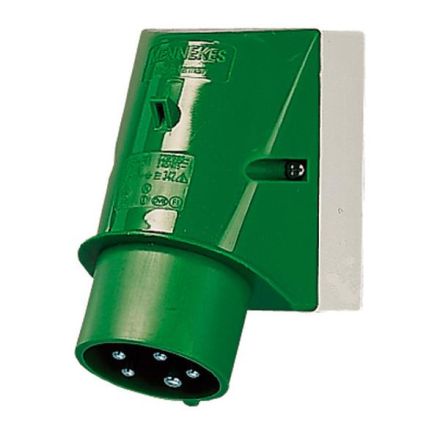

Mennekes 2400 16A 5-pin 2h 50-500V IP44 wall plug

Mennekes 2400 16A 5-pin 2h 50-500V IP44 wall plug

In stock

SKU: 427261

Price on request

€95.78

€0

Into a basketIn the basketGo

Overview

16A5P 2H>50V>300-500Hz wall plug IP 44

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	right-angled
Voltage according to EN 60309-2:	50-500 V (>300-500 Hz) green
Time setting:	2 h
Identification color:	green
Protection class (IP):	IP44
Material:	Plastic
Phase inverter:	no
Design:	Surface-mounted device plug
Rated voltage:	50 to 500 V
Rated frequency:	300 to 500 Hz

Characteristics

Rated frequency300 to 500 Hz

Phase inverterNo

HAB16A 5-pole 2h 50-500V IP44

Manufacturer

HAN2400

GTIN4015394014829

Connection technologyScrew terminal

DesignSurface-mounted device plug

Rated voltage50 to 500 V

IEC current16A

Identification colorGreen

Number of poles5

IP protection)IP44

Plug directionRectangular

UL/CSA current rating (if UL version required)20A

Time position2 hours

MaterialPlastic
