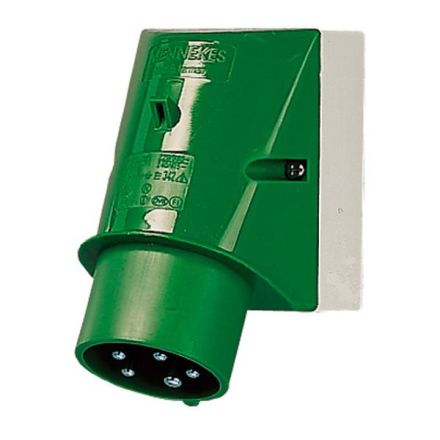

Mennekes 2668 16A 5-pin 10h 50-500V IP44 wall plug

Mennekes 2668 16A 5-pin 10h 50-500V IP44 wall plug

In stock

SKU: 427260

Price on request

€95.78

€0

Into a basketIn the basketGo

Overview

16A5P10H>50V100-300Hz wall plug IP 44

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	right-angled
Voltage according to EN 60309-2:	50-500 V (100-300 Hz) green
Time setting:	10 h
Identification color:	green
Protection class (IP):	IP44
Material:	Plastic
Phase inverter:	no
Design:	Surface-mounted device plug
Rated voltage:	50 to 500 V
Rated frequency:	100 to 300 Hz

Characteristics

Rated frequency100 to 300 Hz

Phase inverterNo

HAB16A 5-pole 10h 50-500V IP44

Manufacturer

HAN2668

GTIN4015394015949

Connection technologyScrew terminal

DesignSurface-mounted device plug

Rated voltage50 to 500 V

IEC current16A

Identification colorGreen

Number of poles5

IP protection)IP44

Voltage according to EN 60309-250-500 V (100-300 Hz) green

Plug directionRectangular

UL/CSA current rating (if UL version required)20A

Time position10 hrs

MaterialPlastic
