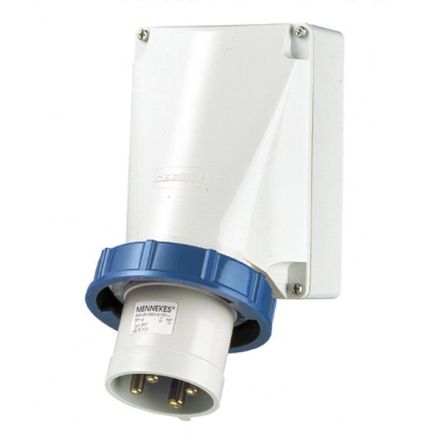

Mennekes 356 63A 4-pole 9h 230V IP67 wall plug

Mennekes 356 63A 4-pole 9h 230V IP67 wall plug

In stock

SKU: 427283

Price on request

€312.71

€0

Into a basketIn the basketGo

Overview

Wall plug, 63A4p9h230V, IP67

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	4
Connection technology:	screw terminal
Plug direction:	right-angled
Voltage according to EN 60309-2:	230 V (50+60 Hz) blue
Time position:	9 h
Identification color:	blue
Protection class (IP):	IP67
Material:	Plastic
Phase inverter:	no
Design:	Surface-mounted device plug
Rated voltage:	229 to 230 V
Rated frequency:	50 to 60 Hz

Characteristics

Rated frequency50 to 60 Hz

Phase inverterNo

HAB63A 4-pole 9h 230V IP67

Manufacturer

HAN356

GTIN4015394002581

Connection technologyScrew terminal

DesignSurface-mounted device plug

Rated voltage229 to 230 V

IEC current63 A

Identification colorBlue

Number of poles4

IP protection)IP67

Voltage according to EN 60309-2230 V (50+60 Hz) blue

Plug directionRectangular

UL/CSA current rating (if UL version required)60A

Time position9 hrs

MaterialPlastic

Mennekes 356 63A 4-pole 9h 230V IP67 wall plug

Mennekes 356 63A 4-pole 9h 230V IP67 wall plug

Price on request

€312.71

€0

Into a basketIn the basketGo

Delivery in Europe

We will deliver your order to all European cities.

We are located

8200-121 Albufeira.R. Dr. Diogo Leote 35.

24 hours

We will send the order within 24 hours.
