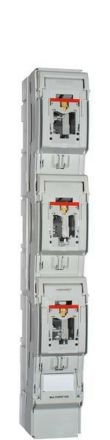

Mersen K1002188 1,300,000 400V 1-pole switchable M10 multi-distributor

In stock
SKU: 1060959
€348.21
Into a basketIn the basketGo

Overview

MULTIVERT NH fuse switch disconnectors fulfill all the functions of an NH fuse switch disconnector. The construction is designed for direct mounting on busbars in a three-pole arrangement. MULTIVERT 630A switch strips can be mounted directly on 185mm busbar systems. MULTIVERT 630A switch strips are designed for NH fuse links in accordance with IEC/EN 60269-2,0636-2, size 3, 630A. The system is a modular system in which the various products can be optimally combined. MULTIVERT enables the user to install quickly and easily as well as being highly secure during installation and maintenance. All MULTIVERT can be locked or sealed with a padlock when closed. This version is delivered with 3 M12 bolts.

Property Value
Number of poles: 1
Weight: 5.43
Weight unit: KG
Cable entry: other
Rated continuous current Iu: 630 A
Conditional rated short-circuit current Iq: 80 kA
Degree of protection (IP), front: IP20
Suitable for fuse links: NH3
Connection type main circuit: Rail connection
Design of the actuating element: Cover handle
Suitable for busbar construction: yes
Max. rated operating voltage Ue at AC: 690 V
Position of the actuating element: front

Characteristics

HAB1,300,000 400V 1-pole switchable M10
ManufacturerMersen
HANK1002188
GTIN9008567000243
Connection type main circuitRail connection
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq80kA
Rated continuous current Iu630A
Suitable for busbar constructionYes
Suitable for fuse insertsNH3
Weight5,43
Weight unit kg
Cable entryOther
Max. rated operating voltage Ue at AC690V
Number of poles1
Position of the actuatorIn front
Protection class (IP), frontIP20
