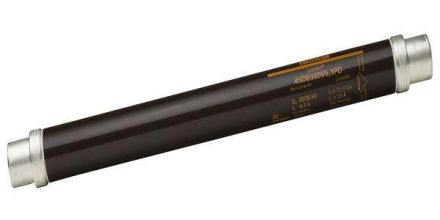

Mersen S209362A 45DB360V6,3PD 20/36kV 6,3A 537mm HH partial range fuse link

In stock
SKU: 798034
€101.26
Into a basketIn the basketGo

Overview

Mersen HV fuse links have been used for decades to provide reliable protection in high-voltage switchgear and switchgear. The Limitor -PD product range complies with the IEC 60282-1 and 0670 T402 standards and protects transformers against the effects of short circuits. 0670 T402 defines a fuse range between 6.3A and 160A. For other performance classes, please visit the Mersen Limitor -P fuse link product range. Mersen uses the best materials: fuse elements are made of pure silver, contact caps are made of silver-coated copper and the fuse body is made of ceramic.

Property Value
Rated current: 6.3 A
Rated voltage: 36 kV
Type of voltage: AC
Rated frequency: 50 to 60 Hz
Breaking capacity: 31.5 kA
Operating class: other
Application: other
Length: 537 mm
Diameter: 56 mm
Performance category according to IEC 60282-1: partial area
With impact detector: yes
Standard: IEC
Triggering characteristics: other
Installation technology: air

Characteristics

Installation technologyAir
Rated frequency50 to 60 Hz
Operating classOther
HAB45DB360V6,3PD 20/36kV 6,3A 537mm
ManufacturerMersen
HANS209362A
GTIN3605340218541
ApplicationOther
Trigger characteristicsOther
Rated voltage36kV
Rated current6.3 A
Diameter56 mm
Length537 mm
Voltage typeAC
Mersen S209362A 45DB360V6,3PD 20/36kV 6,3A 537mm HH partial range fuse link
Mersen S209362A 45DB360V6,3PD 20/36kV 6,3A 537mm HH partial range fuse link
