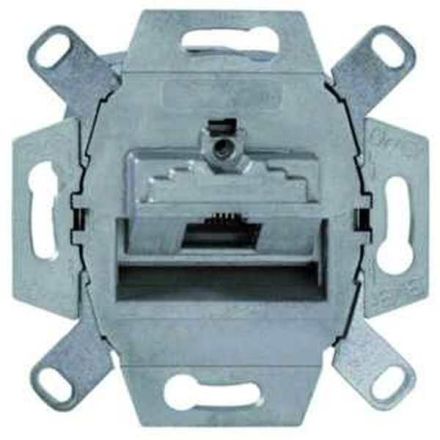

MERTEN MEG4530-0000 UAE insert 8 Cat 6A iso

In stock

SKU: 233805

Price on request

€20.19

€0

Overview

For connecting analog or digital devices via an 8-pin UAE socket. With screw fastening. Connection via LSA terminals. RJ45 universal connection sockets for networks according to Cat.6A, Class EA (10 Gbit/s / 500 MHz). Corresponds to Cat. 6A in accordance with ISO/IEC 11801:2011-06 and DIN EN 50173-1:2011-09. GHMT validated. Suitable for PoE+ in accordance with IEEE 802.3at. Mating cycles >= 1000. Variable cable feed. RJ 11/12 mismating protection.

To be completed with:
Central plate for UAE insert, 1-way system M 2962.., 2983.., system design MEG4521-60.., system area 2918..

Property	Value
Design capable:	yes
Category:	6A (IEC)
Surface-mounted:	yes
Mounting type:	screws
Outlet direction:	angled
Sockets shielded:	yes
Housing shielded:	yes
Channel installation:	yes
Connector type:	RJ45 8(8)
Suitable for number of sockets/couplings:	1.0
Color coding:	yes
Connection type:	LSA
Separate earth connection:	no
Floor tank/underfloor installation:	yes
With text field:	no
Separate cable strain relief:	yes
With sockets/couplings:	yes
Protection class (IP):	IP20
Color:	other
Mechanical coding:	no
With dust protection:	no
Installation type shield connection:	Screw
Composition:	Basic element
Device width:	72.0 mm
Device height:	72.0 mm
Device depth:	29.0 mm
