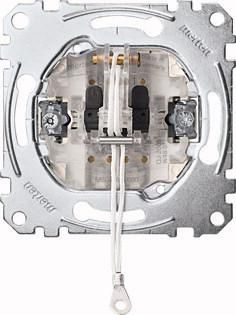

MERTEN MEG3184-0000 pull switch insert normally open 1-pole 10A AC250V

In stock

SKU: 161412

Price on request

€12.80

€0

Overview

Features: -Front-side retrofitting of QuickFlex lighting modules without dismantling the switch. -Front-side measuring and test contacts, accessible without dismantling the switch. -Quick-thread screws for claw fastening. -Recessed claws with return spring. -High-gloss galvanized support ring insulated from the claw. With claw and screw fastening. With plug-in terminals.

To be completed with:
Central plate with inspection window for pull switch system M MEG3380-03.. /-04..

Accessories:
LED lighting module for switches/buttons MEG3901-0000, MEG3901-0006, MEG3921-0000. Version: 10 A, AC 250 V.

Property	Value
Version:	Single button
Suitable for protection class (IP):	IP20
Operating method:	Pull cord
Mounting type:	Flush-mounted
Number of rocker switches:	1.0
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Basic element
Feedback contact:	yes
With lighting:	no
Fastening type:	Claw/screw fastening
Material:	other
Material quality:	other
Surface finish:	matt
Nominal voltage:	250.0 V
Print:	without
Rated current:	10.0 A
Device width:	73.0 mm
Device height:	73.0 mm
Device depth:	37.0 mm
Number of poles:	1.0
Transparent:	no
Antibacterial Treatment:	no
With signal lamp:	no
