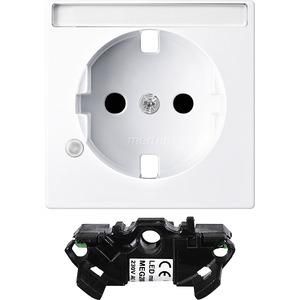

MERTEN MEG2333-0325 Central plate active white glossy

MERTEN MEG2333-0325 Central plate active white glossy

In stock

SKU: 234528

Price on request

€17.72

€0

Overview

Integrated increased touch protection in accordance with 0620 Part 1 (child protection). Extension module for all QuickFlex sockets. Central plate with lens for the control light. The green LED lights up when the mains voltage is applied. Spare part: ==>LED control light module MEG2003-0004. Material: brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color: similar to RAL 9016. Color: active white gl...

Property	Value
Version:	other
RAL number (similar):	9016.0
Number of units:	1.0
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	230.0 V
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
With fine fuse:	no
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Number of switchable sockets:	0.0
Device width:	55.0 mm
Device height:	55.0 mm
Device depth:	42.0 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	yes
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
With signal lamp:	no
Antibacterial treatment:	yes

Characteristics

Insert Module TypeLight switch covers

ColorWhite

Manufacturer

HANMEG2333-0325

GTIN4042811146269

LockableNo

Antibacterial treatmentYes

Number of Units1.0

VersionOther

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55.0 mm

Device height55.0 mm

Device depth42.0 mm

Halogen freeYes

Insulated installationYes

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingYes

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

Nominal voltage230.0V

SurfaceOther

RAL number (similar)9016.0

Protective contactYes

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
