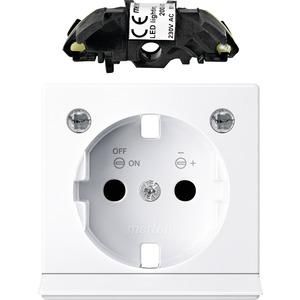

MERTEN MEG2334-0325 Central plate active white glossy

MERTEN MEG2334-0325 Central plate active white glossy

In stock

SKU: 162224

Price on request

€42.14

€0

Overview

Integrated increased contact protection in accordance with 0620 Part 1 (child protection). For retrofitting sockets with a QuickFlex base. Warm white LEDs illuminate an area below the socket. The illuminated area can be optimally adjusted by adjusting the light output. When it is dark, the LED lighting switches on automatically and off again when the ambient light is sufficient. The brightness threshold can be conveniently set from the front and without dismantling the central plate. The automatic function can also be switched off on the central plate so that the lighting remains off, e.g. while you are on holiday.

Material: brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color: similar to RAL 9016.

Color: active white glossy.

Property	Value
Version:	SCHUKO
RAL number (similar):	9016.0
Number of units:	1.0
Color:	white
Suitable for protection class (IP):	IP20
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Ejection mechanism:	no
Halogen-free:	yes
Surge protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
With fine fuse:	no
Fastening type:	claw/screw fastening
Material:	plastic
Material quality:	thermoplastic
Surface:	other
Surface finish:	glossy
Number of switchable sockets:	0.0
Device width:	55.0 mm
Device height:	55.0 mm
Device depth:	42.0 mm
Insulated installation:	yes
With loop-through function:	no
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	yes
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	3.0
Number of active contacts (flat):	0.0
With signal lamp:	yes
Number of phases:	1.0
Antibacterial treatment:	yes

Characteristics

Insert Module TypeLight switch covers

ColorWhite

Manufacturer

HANMEG2334-0325

GTIN4042811146122

LockableNo

Antibacterial treatmentYes

Number of Units1.0

Number of phases1.0

Number of active contacts (approx.)3.0

VersionSCHUKO

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Color

Residual current protectionNo

Suitable for protection class (IP)IP20

Device width55.0 mm

Device height55.0 mm

Device depth42.0 mm

Halogen freeYes

Insulated installationYes

With loop-through functionNo

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingYes

With signal lampYes

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeFlush-mounted

SurfaceOther

RAL number (similar)9016.0

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
