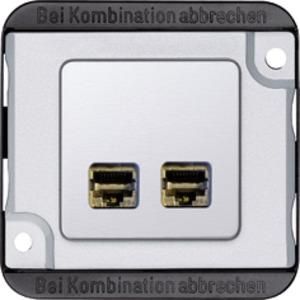

MERTEN MEG4576-7022 Panzer Actassi RJ45 2-way central plate connection module

In stock

SKU: 324594

Price on request

€112.86

€0

Overview

For connecting two analogue or digital end devices via two Actassi RJ45-Cat6A STP modules. Connection via insulation displacement technology (tool-free). Color: matt silver.

Property	Value
Designable:	no
Category:	6A (IEC)
Surface-mounted:	no
Mounting type:	screws
Outlet direction:	straight
Sockets shielded:	yes
Housing shielded:	yes
Channel installation:	no
Connector type:	2x RJ45 8(8)
Suitable for number of sockets/couplings:	2.0
Color coding:	yes
Connection type:	LSA
Separate earth connection:	no
Floor tank/underfloor installation:	no
With text field:	no
Separate cable strain relief:	yes
With sockets/couplings:	yes
Protection class (IP):	IP20
Color:	Aluminum
Mechanical coding:	yes
With dust protection:	no
Mounting type shield connection:	Terminal
Composition:	Base element with full cover plate
Device width:	85.0 mm
Device height:	85.0 mm
Device depth:	36.0 mm
