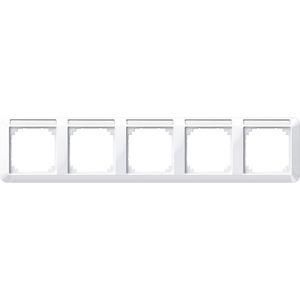

Merten 387525 frame 5-way horizontal active white glossy

Merten 387525 frame 5-way horizontal active white glossy

In stock

SKU: 233754

Price on request

€24.23

€0

Overview

For clear labelling of inserts. When the frame and central plate are dismantled, the label holder remains on the insert. This ensures that switches, sockets or KNX components can be assigned even after renovation.

Accessories:
Labelling strips for 1-M frames with label holder 387100.

Scope of delivery: 5 labelling strips and 5 viewing windows per frame.

Material: Brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color: similar to RAL 9016.

Color: active white glossy.

Property	Value
Height:	365.3 mm
Width:	80.5 mm
Material:	Plastic
RAL number (similar):	9016.0
Mounting direction:	horizontal
Number of units:	5.0
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	yes
Depth:	10.1 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	no
Material quality:	thermoplastic
Surface:	painted
Surface finish:	glossy
Number of units horizontal:	5.0
Number of units vertical:	1.0
Number of modules horizontal (with modular construction):	0.0
Number of modules vertical (with Modular design):	0.0
Mounting type:	Clamp/screw fastening
Diameter of bore (opening):	60.0 mm
Installation width:	0.0 mm
Installation height:	0.0 mm
Transparent:	no
Number of switch inserts:	5.0
With mounting frame:	no
