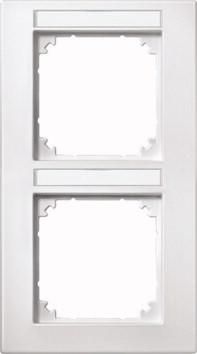

MERTEN 476219 Frame 2-way polar white vertical M-PLAN

MERTEN 476219 Frame 2-way polar white vertical M-PLAN

In stock

SKU: 160447

Price on request

€10.06

€0

Overview

Accessories:
Labeling strips for labelable M-PLAN frames 486100.

Scope of delivery: 2 labeling strips and 2 viewing windows per frame.

Material: Thermoplastic, matt.

Color: polar white.

Property	Value
Height:	154.6 mm
Width:	85.8 mm
Material:	Plastic
RAL number (similar):	9010.0
Mounting direction:	vertical
Number of units:	2.0
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	yes
Depth:	10.1 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	no
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of units horizontal:	1.0
Number of units vertical:	2.0
Number of modules horizontal (with modular design):	0.0
Number of modules vertical (with modular design):	0.0
Mounting type:	Clamp/screw fastening
Hole diameter (opening):	60.0 mm
Installation width:	0.0 mm
Installation height:	0.0 mm
Transparent:	no
Number of switch inserts:	2.0
With mounting frame:	no
