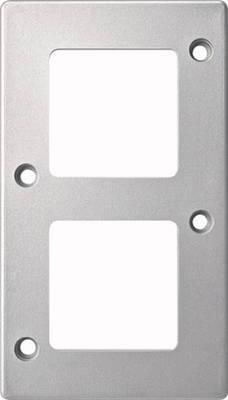

MERTEN 480260 frame 2-way matt silver PANZER

MERTEN 480260 frame 2-way matt silver PANZER

In stock

SKU: 160358

Price on request

€60.13

€0

Overview

With lockable fastening holes. Frame can be used as a drilling template for dowels with a diameter of 6 mm. Only for vertical combinations at a distance of 71 mm.

Accessories:
Installation box MEG3970-7504. Spare part:
Locking seals PANZER 390199.

Scope of delivery: With locking seals.

Color: matt silver.

Property	Value
Height:	166.0 mm
Width:	95.0 mm
Material:	Metal
Mounting direction:	vertical
Number of units:	4.0
Color:	Silver
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	12.0 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	no
Material quality:	Aluminium
Surface:	untreated
Surface finish:	matt
Number of units horizontal:	1.0
Number of units vertical:	4.0
Number of modules horizontal (with modular construction):	0.0
Number of modules vertical (with modular construction):	0.0
Fastening type:	Clamp/screw fastening
Hole diameter (opening):	60.0 mm
Installation width:	0.0 mm
Installation height:	0.0 mm
Transparent:	no
Number of switch inserts:	2.0
With mounting frame:	no
Impact resistance:	IK02
