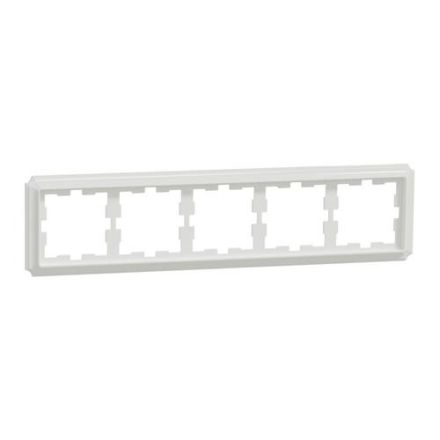

MERTEN MEG4050-4735 D-Antique frame 5-way lotus white frame

MERTEN MEG4050-4735 D-Antique frame 5-way lotus white frame

In stock

SKU: 844913

Price on request

€39.31

€0

Overview

Merten D-Antik frame 5-way MEG4050-4735 is in the color lotus white. This frame can be installed in horizontal and vertical position. Due to the material ABS (acrylonitrile butadiene styrene), this frame is very reliable and durable. This frame is also free of SVHC (substances of very high concern). This frame belongs to the D-Life aesthetic group. It is 90 mm wide, 90 mm high and 12 mm deep. In addition, it is halogen-free, which is good for your health. The IP protection rating of this device is IP20. As a green premium product, this device is also environmentally friendly. And it is mercury and heavy metal free, which benefits the environment and your health. Merten System Design is a modern modular switch range that offers a wide range of inserts for a conventional installation with switches, sockets, dimmers, USB chargers and RJ45 plugs.

Property	Value
Height:	95.0 mm
Width:	380.8 mm
Material:	Plastic
RAL number (similar):	9016.0
Mounting direction:	horizontal and vertical
Number of units:	5.0
Color:	white
Protection class (IP):	IP20
Suitable for built-in installation:	no
Halogen-free:	yes
With hinged lid:	no
Text field/labeling area:	no
Depth:	12.0 mm
Suitable for underfloor duct box:	no
Suitable for device installation duct:	no
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of units horizontal:	5.0
Number of units vertical:	5.0
Number of modules horizontal (with modular construction):	0.0
Number of modules vertically (with modular construction):	0.0
Mounting type:	Clamp/screw fastening
Installation width:	0.0 mm
Installation height:	0.0 mm
Transparent:	no
Number of switch inserts:	5.0
With mounting frame:	no
Impact resistance:	IK03
