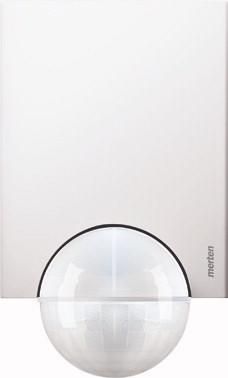

MERTEN 565119 motion detector Argus 110 Basic polar white

MERTEN 565119 motion detector Argus 110 Basic polar white

In stock

SKU: 161482

Price on request

€54.17

€0

Overview

Motion detector for outdoor use. 110 degree area monitoring for smaller house fronts and parts of the house. -360 degree close protection zone (approx. 4 m radius). -Large connection space and plug-in system. -Looping possible. -LED function display for quick alignment at the installation location. -Control elements are protected under the easily accessible cover plate. -Flexibly adjustable sensor head. -Hiding individual lens areas possible. Wall and ceiling mounting without additional accessories. Fastening to outside/inside corners and stationary pipes with a mounting bracket. Mains voltage: AC 230 V +/-10%, 50 Hz. Incandescent lamps: AC 230 V, max. 2000 W. Halogen lamps: AC 230 V, max. 1200 W. Fluorescent lamps: AC 230 V, 1200 W uncompensated. Capacitive load: max. 35 uF. Max. switching current: 16 A, AC 230 V, cos Phi = 1. Detection angle: 110 degrees. Range: max. 12 m. Number of levels: 7. Number of zones: 92 with 368 switching segments. Light sensor: continuously adjustable from 3-1000 lux. Time: 1 s to approx. 8 min in 6 levels. Neutral conductor: required. Sensor head setting for wall mounting: 9 degrees up, 24 degrees down, 12 degrees right/left, +/-12 degrees axial. Sensor head setting for ceiling mounting: 4 degrees up, 29 degrees down, 25 degrees right/left, +/-8.5 degrees axial. EC directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

Protection class: IP 55. Dimensions: 151x93x71 mm (HxWxD).

Accessories:
Mounting bracket 565291/92/93.
Capacitor 542895.

Scope of delivery: With cover plate and segments to limit the detection area, screws and dowels.

Color: polar white.

Property	Value
Depth:	71.0 mm
Width:	93.0 mm
Height:	151.0 mm
Version:	Motion detector
Color:	white
Rated voltage:	230.0 V
RAL number (similar):	9010.0
Material:	Plastic
Mounting type:	Surface-mounted
Response brightness:	3.0 to 1000.0 lx
Protection class (IP):	IP55
Max. switching capacity:	2000.0 W
Type of voltage:	AC
Max. Range to one side:	12.0 m
Scan angle:	110.0 °
Suitable for wall mounting:	yes
Min. duty cycle:	1.0 s
Max. Duty cycle:	8.0 min
Creep-under protection/rear field monitoring:	yes
Temperature:	-20.0 to 25.0 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	no
Max. presence range:	50.0 m²
Max. frontal range:	12.0 m
Max. Inrush current:	16.0 A
Sensor type:	passive infrared
Optimal mounting height:	2.5 m
Surface finish:	glossy
Surface:	untreated
Material quality:	thermoplastic
Detection field diameter on floor:	24.0 m
Number of switching zones:	92.0
Switch-off delay:	480.0 s
Switch-on delay:	0.0 s
Horizontal detection angle:	0.0 to 110.0 °
Frequency:	50.0 Hz
Sensor swivel range, vertical:	-24.0 to 9.0 °
Sensor swivel range, horizontal:	-12.0 to 12.0 °
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	no
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	no
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	no
Forced switching on:	no
Suitable for ceiling mounting:	yes
Connection type:	Plug-in terminal
Antibacterial treatment:	no
Impact resistance:	IK02
Min. Inrush current:	0.0 A

Characteristics

ColorWhite

Bridging switchNo

With signal unitNo

Number of switching zones92.0

Response brightness3.0 to 1000.0 lx

Forced shutdownNo

Max. inrush current16.0 A

Scanning angle110.0 °

Forced switching onNo

Max. presence range50.0 m²

Manufacturer

HAN565119

GTIN4011281892754

Dimming function with dimming insertNo

Alarm functionNo

Connection typePlug-in terminal

Response sensitivity adjustableNo

Response brightness adjustableYes

Antibacterial treatmentNo

VersionMotion detector

Surface finishGlittering

Width93.0 mm

Detection field diameter on floor24.0m

Detection angle horizontal0.0 to 110.0 °

Color

Remote controllableNo

Frequency50.0Hz

Suitable for C-loadYes

Suitable for ceiling mountingYes

Suitable for wall mountingYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height151.0 mm

Constant light controlNo

Max. duty cycle8.0min

Max. range frontal12.0m

Max. range to one side12.0m

Max. switching capacity2000.0W

Min. duty cycle1.0s

With DALI interfaceNo

With remoteNo

Mounting typeSurface-mounted

Extension inputNo

Nominal voltage230.0V

SurfaceUntreated

Optimal mounting height2.5m

RAL number (similar)9010.0

Impact resistanceIK02

IP protection)IP55

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessNo

Temperature-20.0 to 25.0 °C

Depth71.0 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringYes

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
