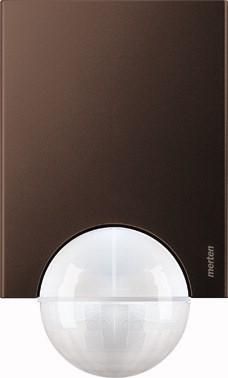

KNX motion detector for outdoor use. 220 degree area monitoring for larger house fronts and areas of the house. With integrated bus coupler. The physical address is programmed with a magnet. -360 degree close protection zone (approx. 4 m radius). -Large connection space and plug-in system. -Looping possible. -LED function display for quick alignment at the installation location. -Control elements are protected under the easily accessible cover plate. -Flexibly adjustable sensor head. -Hiding individual lens areas possible. Wall and ceiling mounting without additional accessories. Fastening to outside/inside corners and stationary pipes with a mounting bracket. KNX software functions: Five motion blocks: Up to four functions can be triggered per block. Telegrams: 1 bit, 1 byte, 2 bytes. Normal operation, master, slave, safety pause, lock function. Sensitivity, brightness and staircase lighting time can be set using the ETS or the potentiometer. Learnable stair light time. Detection angle: 220 degrees. Range: max. 16 m. Number of levels: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously adjustable from approx. 3-1000 lux, infinite lux (infinite: motion detection is independent of the ambient brightness). Time: adjustable from outside from 1 s to approx. 8 min. in 6 levels or via ETS from approx. 3 s to approx. 152 hours. Sensitivity: continuously adjustable. Sensor head setting for wall mounting: 9 degrees up, 24 degrees down, 12 degrees right/left, +/-12 degrees axial. Sensor head setting for ceiling mounting: 4 degrees up, 29 degrees down, 25 degrees right/left, +/-8.5 degrees axial. EC directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Protection class: IP 55. Dimensions: 151x93x71 mm (HxWxD). Accessories: Mounting bracket 565291/92/93. Programming magnet 639190. Scope of delivery: With cover plate and segments to limit the detection area, screws and dowels. Color: dark brazil.
