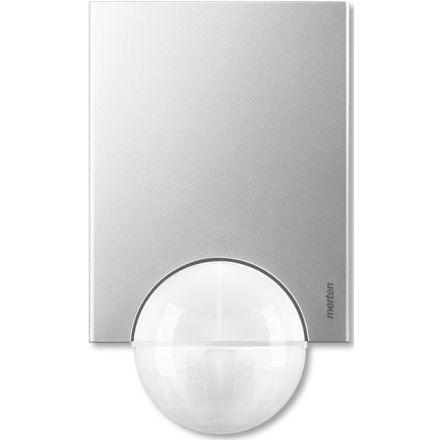

Motion detector for outdoor use. 220 degree area monitoring for larger house fronts and areas of the house. With integrated interface for expansion with a radio module (wireless connection of several devices). 360 degree close protection zone (approx. 4 m radius). Large connection space and plug-in system. Looping possible. LED function display for quick alignment at the installation location. Control elements are protected under the easily accessible cover plate. Flexibly adjustable sensor head. Hiding individual lens areas possible. Wall and ceiling mounting without additional accessories. Fastening to outside/inside corners and stationary pipes with a mounting bracket. Functions: With the integrated radio module, the following functions can be implemented wirelessly: Permanently ON, Permanently OFF and AUTOMATIC. Nominal voltage: AC 220/230V AC, 50 Hz. Nominal current: 10 AX, AC 230 V, cos Phi 0.6. Incandescent lamps: AC 230 V, max. 2200 W. HV halogen lamps: AC 230 V, max. 2000 W. NV halogen lamps: AC 230 V, 500 VA with wound transformer. AC 230 V, 1050 W with electronic transformers. Capacitive load: 10 A, max. 140 uF. Energy saving lamps: AC 230 V, max. 100 VA. Motor load: AC 230 V, max. 1000 VA. Own consumption: < 1 W. Detection angle: 220 degrees. Range: max. 16 m. Number of levels: 7. Number of zones: 112 with 448 switching segments. Light sensor: continuously variable from 3-1000 lux. Switching time: 1 s to approx. 8 min in 6 levels. Sensitivity: continuously adjustable. Neutral conductor: required. Sensor head adjustment for wall mounting: 9 degrees up, 24 degrees down, 12 degrees right/left, +/-12 degrees axial. Sensor head adjustment for ceiling mounting: 4 degrees up, 29 degrees down, 25 degrees right/left, +/-8.5 degrees axial. EC directives: Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC. Protection class: IP 55. Dimensions: 151x93x71 mm (HxWxD). Accessories: Mounting bracket 565291/92/93. Capacitor 542895. Scope of delivery: With cover plate and segments to limit the detection area, screws and dowels. Color: aluminum.
| Property | Value |
| Depth: | 71.0 mm |
| Width: | 93.0 mm |
| Height: | 151.0 mm |
| Design: | Motion detector |
| Color: | Aluminum |
| Rated voltage: | 230.0 V |
| Material: | Plastic |
| Mounting type: | Surface-mounted |
| Response brightness: | 3.0 to 1000.0 lx |
| Protection class (IP): | IP55 |
| Max. switching capacity: | 2000.0 W |
| Type of voltage: | AC |
| Max. Range to one side: | 14.0 m |
| Scan angle: | 220.0 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 1.0 s |
| Max. Duty cycle: | 8.0 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -20.0 to 25.0 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence range: | 50.0 m² |
| Max. frontal range: | 16.0 m |
| Max. Inrush current: | 16.0 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 2.5 m |
| Surface finish: | glossy |
| Surface: | painted |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 28.0 m |
| Number of switching zones: | 112.0 |
| Switch-off delay: | 480.0 s |
| Switch-on delay: | 0.0 s |
| Horizontal detection angle: | 0.0 to 220.0 ° |
| Frequency: | 50.0 Hz |
| Sensor swivel range, vertical: | -24.0 to 9.0 ° |
| Sensor swivel range, horizontal: | -12.0 to 12.0 ° |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | yes |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK02 |
| Min. Inrush current: | 0.0 A |
