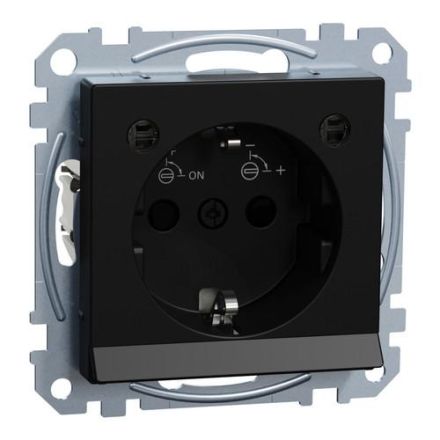

HABLight outlet black matt System M
HANMEG2304-0403
GTIN4042811231989
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1.0
Number of phases1.0
Number of active contacts (approx.)1.0
Printing/markingOther
VersionSCHUKO
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
Residual current protectionNo
Frequency50.0Hz
Suitable for protection class (IP)IP20
Device width75.0 mm
Device height75.0 mm
Device depth53.0 mm
Halogen freeYes
Insulated installationYes
Min. depth of the device box28.0 mm
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingYes
With signal lampYes
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeFlush-mounted
Nominal voltage250.0V
Rated current16.0A
SurfacePainted
RAL number (similar)9005.0
Impact resistanceIK03
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
