MERTEN MEG4014-7060 1-way matt silver surface-mounted housing

In stock

SKU: 832821

Price on request

€99.41

€0

Overview

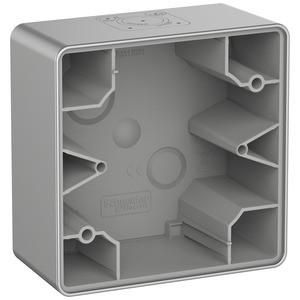

The Schneider Electric Merten surface-mounted housing 1-way MEG4014-7060 is matt silver. The surface-mounted housing is made of glass-fiber-reinforced polycarbonate and is therefore robust. It is theft-proof thanks to the sealing of the screw holes in the frame. The openings for cables and duct entries must be made on site. It is also halogen-free.

Property	Value
Device height:	98.0 mm
Device width:	98.0 mm
Device depth:	46.0 mm
Number of units:	1.0
Mounting direction:	horizontal and vertical
Color:	Aluminum
With duct entry:	yes
With screw connection:	yes
With cable connection:	yes
Number of modules (with modular construction):	0.0
Halogen-free:	yes
Composition:	Surface-mounted housing
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	matt
With cover frame:	no
Suitable for modular installation switch programs:	no
Impact-resistant:	yes
Protection class (IP):	IP20
Transparent:	no
