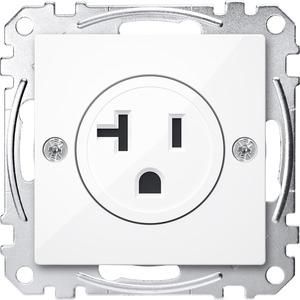

MERTEN MEG2156-0325 USA socket insert 20A active white glossy

MERTEN MEG2156-0325 USA socket insert 20A active white glossy

In stock

SKU: 234507

Price on request

€31.33

€0

Overview

Material: Brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial effect. Color: similar to RAL 9016. Color: active white glossy.

Property	Value
Version:	American National Standard
RAL number (similar):	9016.0
Number of units:	1.0
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	125.0 V
Rated current:	20.0 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Flush-mounted
Text field/labeling area:	no
Frequency:	50.0 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	other
Surface finish:	glossy
Rated residual current:	0.0 mA
Number of modules (with modular design):	0.0
Number of switchable sockets:	0.0
Device width:	73.0 mm
Device height:	73.0 mm
Device depth:	28.0 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK03
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	1.0
Number of active contacts (flat):	0.0
With signal lamp:	no
Number of phases:	1.0
Antibacterial treatment:	yes
Min. depth of device box:	40.0 mm

Characteristics

ColorWhite

Manufacturer

HANMEG2156-0325

GTIN4042811151560

LockableNo

Connection typeScrew terminal

Antibacterial treatmentYes

Number of Units1.0

Number of modules (for modular construction)0.0

Number of phases1.0

Number of active contacts (approx.)1.0

VersionAmerican National Standard

Surface finishGlittering

Ejection mechanismNo

Mounting typeClaw/screw fastening

Rated residual current0.0mA

Color

Residual current protectionNo

Frequency50.0Hz

Suitable for protection class (IP)IP20

Device width73.0 mm

Device height73.0 mm

Device depth28.0 mm

Halogen freeYes

Insulated installationYes

Min. depth of the device box40.0 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionNo

Mounting typeFlush-mounted

Nominal voltage125.0V

Rated current20.0A

SurfaceOther

RAL number (similar)9016.0

Impact resistanceIK03

Protective contactYes

Protective conductor contact roundNo

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
