METZ CONNECT M12 socket straight 8-pin 10.0m connection cable, 142M2X20100

In stock

SKU: 483610

Price on request

€58.70

€0

Overview

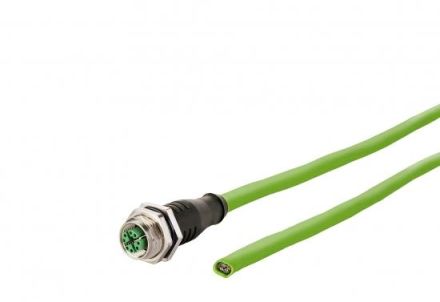

Shielded M12 Ethernet connection cable, Cat.6, A, 8-pin, X-coded, side 1: M12 socket, straight, side 2: free cable end, cable molded to M12 socket, cores 4x2xAWG26/7, overall shield Cu braid, tinned, cable green, PUR, protective cap included in delivery, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other cable lengths on request

Property	Value
Sheath color:	green
Kink protection sleeve:	molded
Locking lever protection:	no
Color of the anti-kink sleeve:	black
Flame-retardant:	according to EN 60332-3-24
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	yes
Suitable for drag chains:	no
Cable construction:	4x2
AWG cross section:	26
Cable type:	SF/UTP
Pin assignment:	1:1
Protection class (IP):	IP65
Category:	6A (IEC)
Lenght:	10.00
Connector type connection 1:	M12
Material of the connector housing connection 1:	Metal
Connector housing connection 2:	without
Connector housing material connection 2:	not applicable
