METZ CONNECT 1.0m M12+RJ45 connector 8-pin 45° connection cable, 142M2X1A010

In stock

SKU: 483676

Price on request

€44.42

€0

Overview

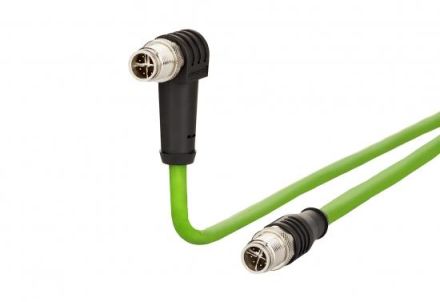

Shielded M12 to M12 Ethernet connection cable, Cat.6, A, 8-pin, X-coded, side 1: M12 connector, straight, side 2: M12 connector, angled, coding position 45°, cable overmolded on M12 connectors, cores 4x2xAWG26/7 PiMF, overall shield Cu braid, tinned, wiring 1:1, cable PUR, green, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other lengths on request

Property	Value
Sheath color:	green
Anti-kink sleeve:	molded
Locking lever protection:	no
Color of the anti-kink sleeve:	black
Flame-retardant:	according to EN 60332-3-24
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	yes
Suitable for drag chains:	no
Cable construction:	4x2
AWG cross section:	26
Cable type:	SF/UTP
Pin assignment:	1:1
Protection class (IP):	IP65
Category:	6A (IEC)
Lenght:	1.00
Connector type connection 1:	M12
Connector type connection 2:	M12
Material of the connector housing connection 1:	Metal
Material of the connector housing connection 2:	Metal
