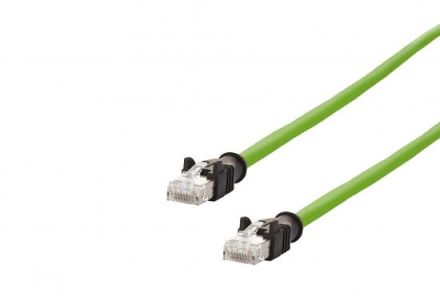

METZ CONNECT 5.0m RJ45 plug straight 8-pin green connection cable, 142M2X55050

In stock

SKU: 483657

Price on request

€37.58

€0

Overview

Shielded RJ45 connection cable, Cat.6A, 8-pin, side 1: RJ45 plug, straight, side 2: RJ45 plug, straight, cable overmolded on plugs, cores 4x2xAWG26/7 PiMF, wiring according to T568B, overall shield Cu braid, tinned, cable PUR, green, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other lengths on request

Property	Value
Sheath color:	green
Anti-kink sleeve:	molded
Locking lever protection:	no
Color of the anti-kink sleeve:	black
Flame-retardant:	according to EN 60332-3-24
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	yes
Suitable for drag chains:	no
Cable construction:	4x2
AWG cross section:	26
Cable type:	SF/UTP
Pin assignment:	1:1
Protection class (IP):	IP65
Category:	6A (IEC)
Lenght:	5.00
Connector type port 1:	RJ45 8 (8)
Connector type port 2:	RJ45 8 (8)
Material of connector housing connection 1:	Plastic
Material of connector housing connection 2:	Plastic
