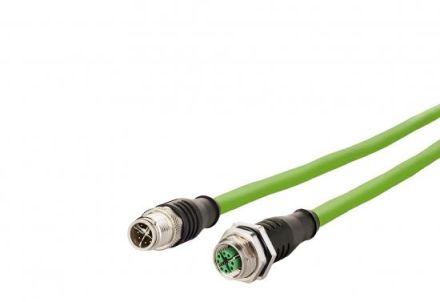

METZ CONNECT M12 socket straight 8-pin 0.5 m connection cable, 142M2X12005

In stock

SKU: 483644

Price on request

€48.53

€0

Overview

Shielded M12 Ethernet connection cable, Cat.6, A, 8-pin, X-coded, side 1: M12 plug, straight, side 2: M12 socket, straight, cable molded on the M12 plug and M12 socket, wires 4x2xAWG26/7 PiMF, overall shield Cu braid, tinned, wiring 1:1, cable PUR, green, socket screw plug included in delivery, variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other cable lengths on request

Property	Value
Sheath color:	green
Anti-kink sleeve:	molded
Locking lever protection:	no
Color of anti-kink sleeve:	black
Flame-retardant:	according to EN 60332-3-24
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	yes
Suitable for drag chains:	no
Cable construction:	4x2
AWG cross section:	26
Cable type:	SF/UTP
Pin assignment:	1:1
Protection class (IP) :	IP65
Category:	6A (IEC)
Length:	0.50
Connector type port 1:	M12
Connector type connection 2:	M12
Material of connector housing connection 1:	Metal
Material of connector housing connection 2:	Metal

Characteristics

Cable typeSF/UTP

Oil-resistant according to EN 60811-404Yes

Category6A (IEC)

HABM12 socket straight 8-pin 0.5 m

Minimal order10 pcs

Manufacturer

HAN142M2X12005

GTIN4251122189579

Length0.50

Coat colorGreen

METZ CONNECT M12 socket straight 8-pin 0.5 m connection cable, 142M2X12005

Price on request

€48.53

€0
