METZ CONNECT M12+RJ45 g. AWG26 4p. D-coded 1.0m connection cable, 142M4D15010

In stock

SKU: 483484

Price on request

€21.55

€0

Overview

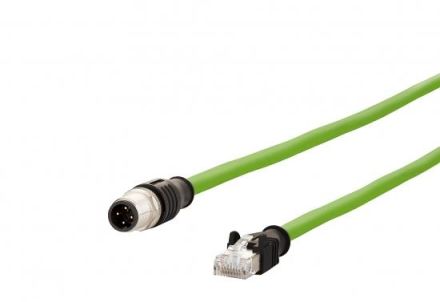

Shielded M12 to RJ45 Ethernet connection cable, Cat.5e, 4-pin, D-coded according to IEC 61076-2-101, side 1: M12 connector, straight, side 2: RJ45 connector, straight, cable overmolded on M12 and RJ45 connectors, cores 4x1xAWG26/19, overall shield Cu braid, tinned, wiring according to Profinet, cable PUR, green, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other lengths on request

Property	Value
Sheath color:	green
Anti-kink sleeve:	molded
Locking lever protection:	no
Color of anti-kink sleeve:	black
Flame-retardant:	no
Halogen-free according to EN 60754-1/2:	no
Oil-resistant according to EN 60811-404:	no
Suitable for drag chains:	yes
Cable construction:	1x4
AWG cross section:	26
Cable type:	S/UTP
Pin assignment:	other
IP rating:	IP20
Category:	5E
Length:	1.00
Connector type port 1:	M12
Connector type port 2:	RJ45 8 (4)
Connector housing material port 1:	Metal
Connector housing material port 2:	Metal

Characteristics

Cable typeS/UTP

Oil-resistant according to EN 60811-404No

Category5E

HABM12+RJ45 g. AWG26 4p. D-coded 1.0m

Manufacturer

HAN142M4D15010

GTIN4250184172680

Length1.00

Coat colorGreen
