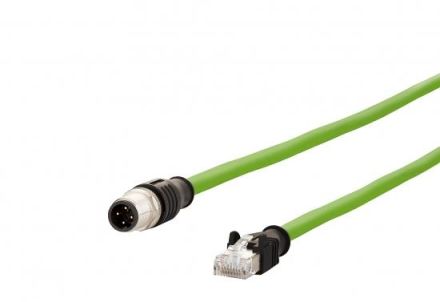

METZ CONNECT M12+RJ45 g. AWG26 4p. D-coded 5.0m connection cable, 142M4D15050

In stock
SKU: 483486
€29.70
Into a basketIn the basketGo

Overview

Shielded M12 to RJ45 Ethernet connection cable, Cat.5e, 4-pin, D-coded according to IEC 61076-2-101, side 1: M12 connector, straight, side 2: RJ45 connector, straight, cable overmolded on M12 and RJ45 connectors, cores 4x1xAWG26/19, overall shield Cu braid, tinned, wiring according to Profinet, cable PUR, green, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other lengths on request

Property Value
Sheath color: green
Anti-kink sleeve: molded
Locking lever protection: no
Color of anti-kink sleeve: black
Flame-retardant: no
Halogen-free according to EN 60754-1/2: no
Oil-resistant according to EN 60811-404: no
Suitable for drag chains: yes
Cable construction: 1x4
AWG cross section: 26
Cable type: S/UTP
Pin assignment: other
IP rating: IP20
Category: 5E
Length: 5.00
Connector type port 1: M12
Connector type port 2: RJ45 8 (4)
Connector housing material port 1: Metal
Connector housing material port 2: Metal

Characteristics

Cable typeS/UTP
Oil-resistant according to EN 60811-404No
Category5E
HABM12+RJ45 g. AWG26 4p. D-coded 5.0m
ManufacturerMETZ CONNECT
HAN142M4D15050
GTIN4250184172703
Length5.00
Coat colorGreen
