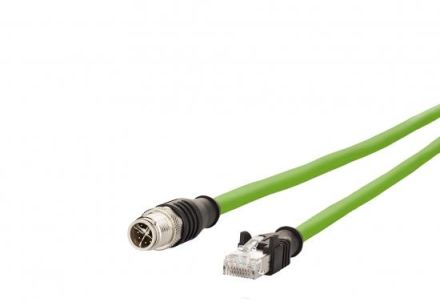

METZ CONNECT M12+RJ45 connector straight 8-pin 80.0m connection cable, 142M2X15800

In stock

SKU: 483674

Price on request

€275.82

€0

Overview

Shielded M12 connector to RJ45 connector connecting cable, Cat.6, A, 8-pin, X-coded, side 1: M12 connector, straight, side 2: RJ45 connector, straight, cable overmolded on the M12 and RJ45 connector, wires 4x2xAWG26/7 PiMF, wiring according to T568B, overall shield Cu braid, tinned, cable PUR, green, standard variants: 1.0 m, 2.0 m, 5.0 m, 10.0 m, other lengths on request

Property	Value
Sheath color:	green
Anti-kink sleeve:	molded
Locking lever protection:	no
Color of the anti-kink sleeve:	black
Flame-retardant:	according to EN 60332-3-24
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	yes
Suitable for drag chains:	no
Cable construction:	4x2
AWG cross section:	26
Cable type:	SF/UTP
Pin assignment:	1:1
Protection class (IP):	IP65
Category:	6A (IEC)
Lenght:	80.00
Connector type connection 1:	M12
Connector type connection 2:	RJ45 8 (8)
Material of the connector housing connection 1:	Metal
Material of the connector housing connection 2:	Plastic

Characteristics

Cable typeSF/UTP

Oil-resistant according to EN 60811-404Yes

Category6A (IEC)

HABM12+RJ45 connector straight 8-pin 80.0m

Minimal order4 pcs

Manufacturer

HAN142M2X15800

GTIN4250184135876

Length80.00

Coat colorGreen

METZ CONNECT M12+RJ45 connector straight 8-pin 80.0m connection cable, 142M2X15800

Price on request

€275.82

€0
