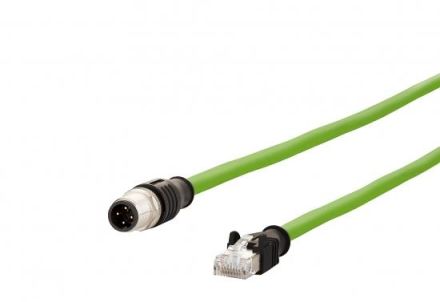

Shielded M12 to RJ45 Ethernet connection cable, suitable for drag chains, Cat.5e, 4-pin, D-coded according to IEC 61076-2-101, side 1: M12 connector, straight, side 2: RJ45 connector, straight, cable overmolded on M12 and RJ45 connectors, wires 2x2xAWG22/7, tinned with plastic foil, inner jacket FRNC, with aluminum-coated plastic foil, overall shield Cu braid, tinned, approx. 85% coverage, Profinet wiring (WS-GE-BL-OR), cable PUR, green, standard variants: 1.0 m, 2.0 m, 3.0 m, 5.0 m, 10.0 m, other lengths on request
| Property | Value |
| Colour of jacket: | green |
| Anti-kink sleeve: | moulded |
| Locking lever protection: | yes |
| Colour of anti-kink sleeve: | black |
| Flame-retardant: | no |
| Halogen-free in accordance with EN 60754-1/2: | yes |
| Oil-resistant in accordance with EN 60811-404: | no |
| Suitable for drag chains: | no |
| Cable construction: | 2x2 |
| AWG cross-section: | 22 |
| Cable type: | SF/FTP |
| Pin assignment: | other |
| Protection class (IP): | IP20 |
| Category: | 5E |
| Length: | 10.00 |
| Connector type connection 1: | M12 |
| Connector type connection 2: | RJ45 8 (4) |
| Material of connector housing connection 1: | Metal |
| Material of connector housing connection 2: | Metal |
