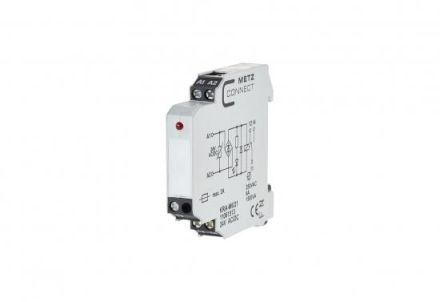

Coupling modules provide safe electrical isolation between logic and load. Connection with screw terminals closed compact series integrated protective circuit safe separation Operating voltage 12 V or 24 V AC/DC Current consumption 12 V AC/DC 20 mA Current consumption 24 V AC/DC 13 mA Output / contacts 1 changeover contact (SPDT) Output / contact material AgSnO2 Output / switching voltage 250 V AC/DC Output / continuous current 6 A Output / inrush current 8 A Output / switching frequency 600 switching cycles / h Response time 10 ms Release time 5 ms Mechanical service life 2 x 107 switching cycles Electrical service life 1 x 105 switching cycles Connection cross-section 2.5 mm2 Display LED red Dimensions W x H x D 11.2 x 61.3 x 60 mm Weight 45 g Operating temperature range -20 °C to +55 °C Storage temperature range -25 °C to +70 °C Protection class housing / terminals IP40 / IP20
